How To Stop Flexo Printing Blotches And Ghosting: Anilox Roller And Ink Viscosity Adjustments

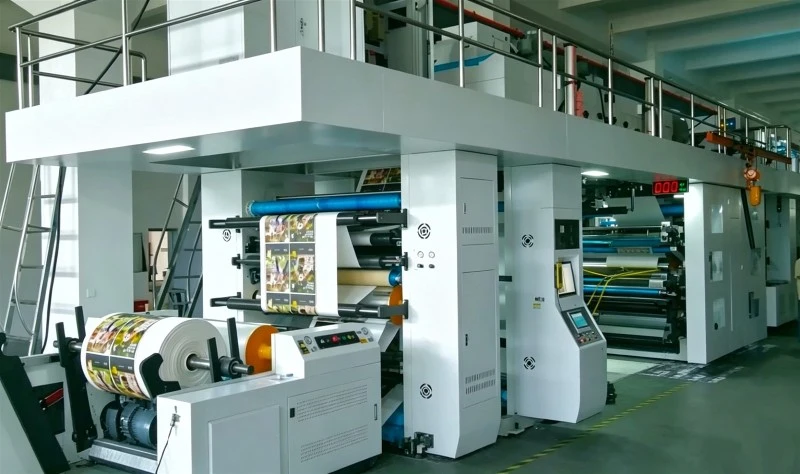

When a corrugated box plant runs high-end branded packaging on a automatic Flexo Folder Gluer (FFG) or a standalone flexo press, large solid color blocks are a massive profit driver. However, these large color areas are also where your print quality can instantly fall apart.

Two of the most common and frustrating defects that trigger immediate customer rejections are blotches (white spots or uneven ink coverage) and ghosting (a faint, unwanted repeat image appearing where it should be a clean solid color).

Most floor managers look at a blotchy or ghosted print and immediately blame the quality of the printing plates or assume the rubber rollers are worn out. They spend hours changing plates or stopping the line to wipe down the machine.

In reality, these two defects are almost always caused by a mismatch between your anilox roller settings and your water-based ink viscosity. If your ink is too thick or too thin, or if your anilox doctor blade is not applying the correct mechanical force, the ink cannot transfer evenly at high speeds. By making a few precise, manual adjustments on your shop floor, you can achieve clean, solid colors without slowing down your hourly output.

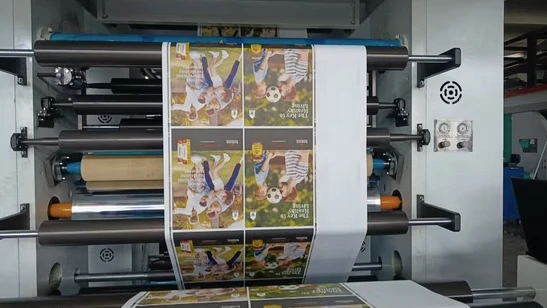

Printing blotches look like a collection of tiny craters or white spots inside what should be a solid, deep color block. This happens because the ink is failing to lay flat and merge together across the surface of the corrugated sheet.

To fix blotches, you must look at the fluidity of your ink. In many packaging plants, operators leave water-based ink buckets open to the workshop air. Over a 12-hour shift, the water carrier inside the ink evaporates into the room. This causes the ink to become thick and sticky.

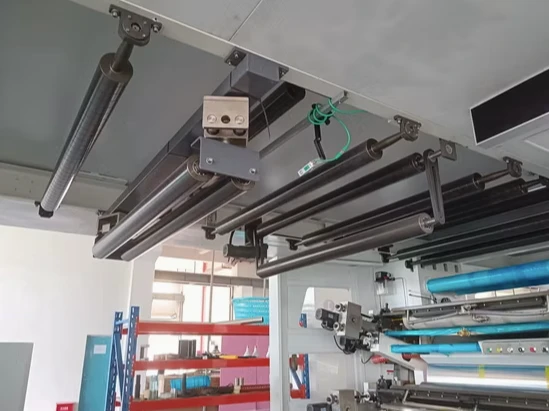

When ink becomes too thick, its viscosity baseline rises. When the cells of your laser-engraved ceramic anilox roller dive into the ink chamber, the thick ink refuses to release cleanly from the microscopic cells onto the printing plate. Instead of a smooth, uniform wet film, the plate receives tiny, irregular droplets. When the plate hits the cardboard at 200 sheets per minute, those droplets do not spread out; they stay separated, leaving thousands of microscopic un-inked white spots on the paper surface.

To stop blotches, your operators must test and adjust the ink viscosity back to a fluid, easy-to-release state every single morning before pressing the start button.

Ghosting is a completely different engineering failure. It occurs when a faint, shadow-like silhouette of a structural design element (like a text box or a logo) from one part of your printing plate actively repeats itself inside a downstream solid color area.

Ghosting happens because your anilox roller is being physically starved of ink during high-speed rotation.

When a large solid color section of the printing plate rolls over the spinning anilox roller, it instantly drinks up almost 100% of the ink stored inside those micro-cells. As the anilox roller continues to spin back toward the ink chamber to get refilled, it must pass under a mechanical chamber doctor blade.

If the doctor blade chamber pressure is set too tight, or if the blade angle is misaligned, the blade acts too aggressively. It literally scrapes the cells so clean that the chamber does not have enough microseconds to fully refill the cell cavities before they hit the printing plate again. The cells remain half-empty, creating a faint "shadow" of the previous print cycle on the next box sheet.

To eliminate ghosting, you do not need new ink; you need to calibrate the mechanical force pushing your doctor blade system against the ceramic face of the anilox roller.

To help your production crew diagnose and resolve these print defects instantly without reading long paragraphs, use these two direct reference tables on your floor:

Table 1: Ink Viscosity Target Guidelines (Using a Standard Zahn Cup #2)

Table 2: Mechanical Sizing and Adjustments for Anilox and Doctor Blade Systems

When dealing with printing blotches on water-based inks, viscosity is only half of the solution. The other chemical factor that most independent plants ignore is the pH level of the ink tank.

Water-based flexo inks rely on a chemical balancing agent, usually ammonia, to keep the acrylic resins fully dissolved in the water liquid carrier. Ammonia is a highly volatile chemical. As the ink churns inside your machine circuits and pumps under the workshop heat, the ammonia gas constantly escapes into the air.

When the ammonia drops, the pH level of your ink drops with it.

If your ink pH falls below the standard 8.5 baseline, the acrylic resins lose their chemical balance and begin to clump together. This turns the ink into a microscopic sludge. Even if you add water to lower the viscosity, this sludgy ink cannot lay flat on the corrugated liner. It forms tiny beads on the paper surface, triggering severe blotches.

To fix this chemical failure, you do not need more water. You must add small amounts of a liquid pH stabilizer (usually an amine or ammonia compound) to bring the tank back to a stable 8.8 to 9.2 operating window.

If your ink viscosity and pH are correct, but you are still seeing ghosting or faint solid colors, you have a mechanical pressure imbalance. A flexo printing unit has three critical hardware nips that must be perfectly calibrated down to the millimeter.

• Nip 1: Anilox Roller to Printing Plate Pressure: This controls how much ink is transferred to your resin plate. If this pressure is set too heavy, the anilox literally squishes the ink off the plate surface, pushing it to the edges of your text or design. This causes heavy ink accumulation lines and leaves the center of your color block starved of ink, creating an immediate blotch or shadow.

• Nip 2: Printing Plate to Cardboard Pressure: This is your actual printing impression pressure. It must be set as a "kiss touch." If you smash the plate into the corrugated board to force the color to look solid, you will crush the internal flutes of the board, ruining the box strength and creating uneven ink streaks along the wave lines of the paper.

• Nip 3: Pull Roller / Feed Gate Gaps: The rollers that pull the cardboard through the printing unit must match the exact thickness of your board. If they are too tight, they pre-crush the paper fibers before the ink can hit the sheet, causing the paper to reject the water-based ink carrier.

Instruct your printing crew to follow this direct technical sequence whenever a solid color job exhibits blotches or ghosting shadows on the production line:

• Step 1: Check the Ink Tank Baseline. Dip your Zahn Cup #2 into the active ink return bucket. Time the flow. If the ink takes longer than 22 seconds to drain, manually add 1 liter of fresh water and 100ml of pH stabilizer. Stir for 2 minutes and re-test until you hit 19 seconds.

• Step 2: Back Off the Doctor Blade Pressure. If ghosting shadows appear, go to the pneumatic regulator on your doctor blade chamber. Lower the air pressure setting by 0.5 bar increments. You want the blade to wipe the anilox face gently, not scrape it bone dry.

• Step 3: Perform a "Kiss-Print" Calibration. Back all printing unit pressures completely off until the machine stops transferring ink to the board. Then, slowly advance the printing cylinder forward by 0.05mm steps until a crisp, complete image appears. Stop there. Never apply extra pressure to fix a bad ink problem.
