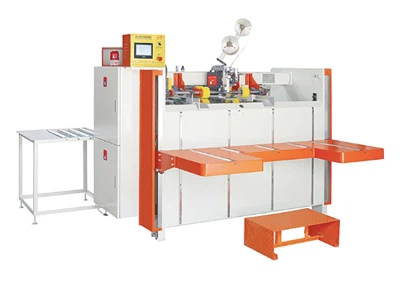

Corrugated Box Stitching Machine

The corrugated box stitching machine is a semi-automatic flat‑wire stapler designed for single‑sheet, double‑sheet, irregular, and bottom‑only carton styles. A twin‑servo drive configuration works alongside a Siemens industrial controller to ensure precise, dependable motion with fewer mechanical transmission parts. All size parameters are adjusted electrically through a colour touchscreen, allowing complete format changeover in under 60 seconds. Even inexperienced operators can define stitch pitch, number of nails, stitching pattern, and rear gauge position directly on the interface.

In a single pass, the machine produces single, double, or reinforced stitches-double along both edges and single through the centre. A photosensor at the feed unit automatically lifts the paper stack when a cycle begins, while both the feeding and stacking sections track finished pieces and eject them in programmable batches (1‑99 cartons) for easy bundling. Designed primarily for 3‑ply and 5‑ply board, a 7‑ply variant is available upon request.

• Flat‑Wire Stapling: Employs flat wire for sturdy, reliable carton seams.
• Twin Servo Motor Drive: Two independent servo motors reduce mechanical complexity and lower failure risk.
• Siemens Programmable Control: A Siemens PLC system provides stable, fully integrated machine management.
• 60‑Second Electric Setup: All dimension and pitch adjustments are completed electrically without tools via the HMI.
• Touchscreen Parameter Configuration: Stitch pitch, nail count, stitch mode, and back stop position are set digitally on screen.
• Multi‑Mode Single‑Pass Stitching: Executes single, double, and edge‑reinforced double‑stitch patterns in one continuous motion.
• Auto‑Lift Feed & Batch Stacking: A photoelectric sensor triggers automatic stack elevation; both feed and delivery units count output and batch it from 1 to 99 pieces.
• Corrugated Board Versatility: Optimised for 3‑ and 5‑ply cartons, with 7‑ply capability offered as a custom option.
